Next Generation Embedded Computing
ERiS Module
A compact, high-performance System-on-Module engineered for robotics, industrial automation, edge AI and intelligent embedded applications.

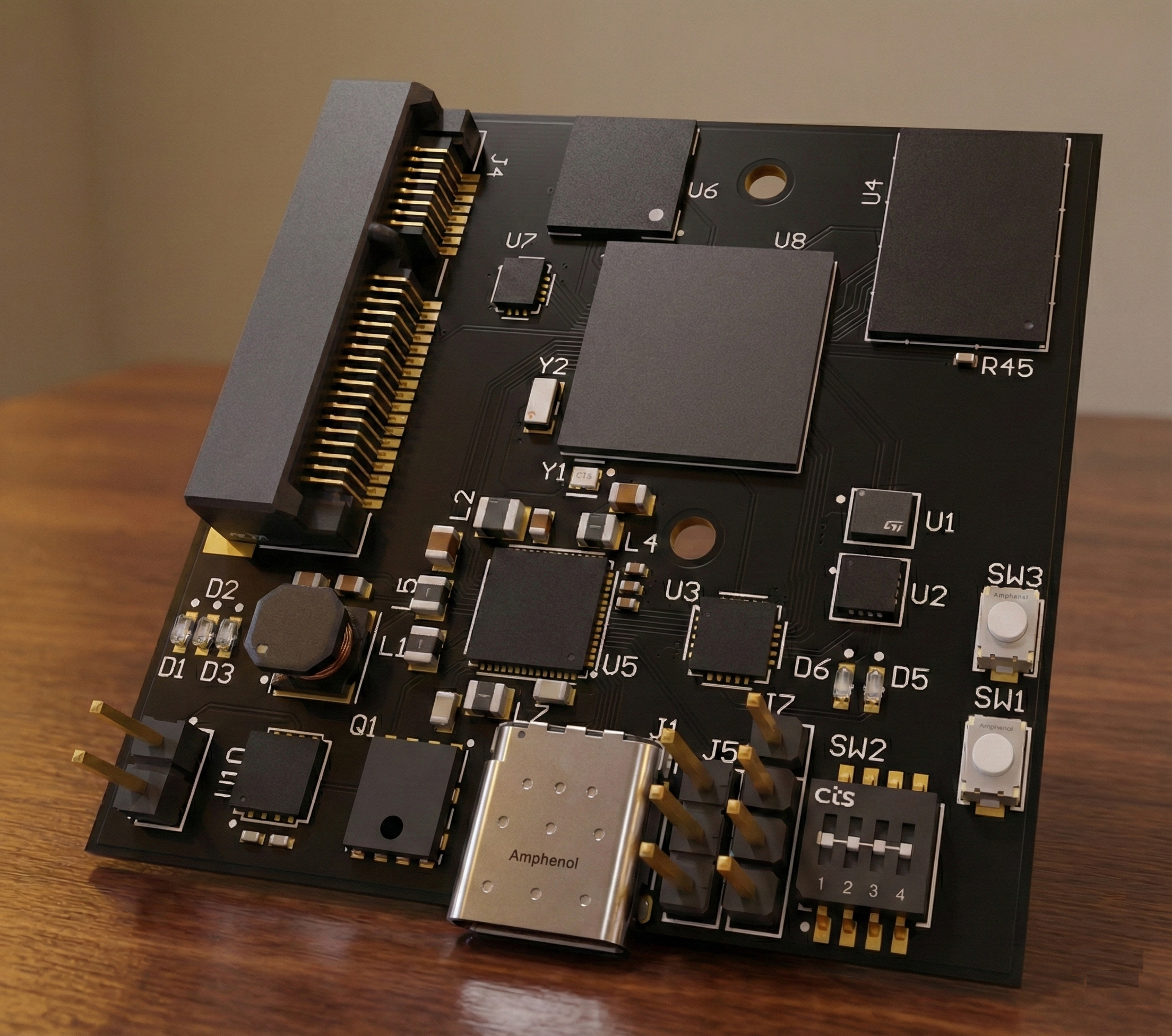

ERiS Module
•
System on Module
•
50 mm × 50 mm
Technical Specifications
Built for intelligent machines.
01 — PROCESSOR
STMicroelectronics
STM32MP25xx Processor
02 — COMPUTE
1.5 GHz Processing Performance
Dual ARM Cortex-A35 and 400 MHz Cortex-M33 Cores.
03 — AI & GRAPHICS
Neural Processing Unit + 3D GPU
Neural Processing Unit (NPU) operating at up to 1.35 TOPS, with
integrated 3D GPU.
04 — HIGH-SPEED SYSTEM MEMORY
1 GB to 4 GB LPDDR4
High-bandwidth, low-power LPDDR4 system memory supporting
data-intensive robotic workloads, multi-thread execution, and
sensor processing.
05 — EMBEDDED NON-VOLATILE STORAGE
32 GB eMMC Storage (Expandable)
High-reliability, industrial onboard flash storage for the host
operating system, filesystem logging, model weights, and
expandable external storage support.
06 — EXPANSION
200-Pin Board-to-Board Extension
High-density board-to-board interface for flexible carrier board
integration.
07 — ENVIRONMENT
−40°C to +85°C Operating Temperature
Supports working temperatures ranging from −40°C to +85°C.
08 — SOFTWARE & CUSTOMIZATION
Customized Linux - EchoLinux
Supports customized Linux - EchoLinux with a custom carrier
board as per application requirements.
08 — COMPACT FORM FACTOR
50 mm × 50 mm Modular Footprint
Engineered ultra-compact dimensions allowing seamless
integration into space-constrained drones, autonomous mobile
robots (AMRs), and payload enclosures.
05 — POWER & EFFICIENCY
STPMIC25xx PMIC & Ultra-Efficient with power ~7.5 W
Consumption
Integrated, programmable power management with dynamic voltage
scaling delivering an ultra-low total module power draw of ~7.5
W, ideal for battery-powered robotics and passive thermal
designs.
Contact Us
Let's build the future.
Email
elevenrobotix@gmail.com
Phone
+91 7709096410
ERiS System on Module
The next generation starts here.
ERiS is being engineered for developers, robotics companies, OEMs and innovators building the intelligent machines of tomorrow.
